Component Builder

Available from 4.4.4.0

Component Builder creates visualization components for Intuitive BI dashboards, such as charts, gauges, or data grids. Select a dataset, choose the component type, and configure attributes and measures to display business intelligence data.

Settings > Intuitive BI > Intuitive BI Dashboard Designer > Component Builder

A new component builder will become available.

Select a Dataset

The dataset must be added before the component can be configured.

Settings > Intuitive BI > Intuitive BI Dashboard Designer > Component Builder

Click Select Dataset , a pop up window with the Dataset navigator will open, from the folder structure select the required Dataset.

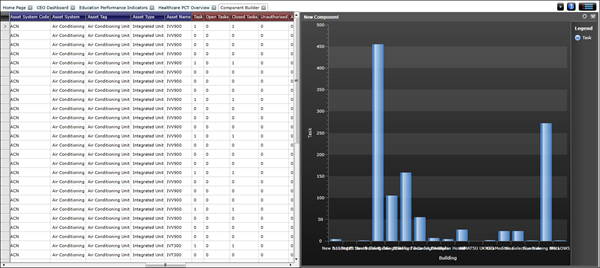

The Component can now be configured by setting the Chart Component and dragging in Attributes and Measures from the Dataset.

Chart Components

The Component Type must be selected before attributes and measures are added, otherwise data will be lost. The dataset will automatically be divided into attributes and measures, the Component Type picked will set conditions on the amount of attributes and measures that can be added.

Settings > Intuitive BI > Intuitive BI Dashboard Designer > Component Builder

Select either Grid, Chart or Gauge.

  • For Chart components there can only be one blue attribute at any one time, selecting a different attribute overwrites the previous one. There can be multiple measure values in a chart and every measure column adds to the total number of series displayed in the chart.
  • For Grid components the measure fields are displayed as a table and as such can accommodate as many attribute and measure columns as the user sees fit.
  • For Gauge components only one measure column can be selected from the Dataset.

Adding Attributes and Measures

A Dataset is spilt into two column categories, Dataset columns with a blue header are attributes, Dataset columns with a red header are measures.

Blue Attribute columns contain descriptive information e.g. names dates and descriptions.

Red Measure columns provide results calculated form the column values e.g. sum or count.

Columns are added by dragging the column header into the component builder

Applying Filters

Data can be filtered to ensure only the required values shown.

Settings > Intuitive BI > Intuitive BI Dashboard Designer > Component Builder

A pop up window will appear that will allow filters to be applied.

Select the column to filter, Select the Operation to filter by, add the values -one value can be added at a time but multiple filters cab be applied.

Set Title

A Title can be added to the component.

Settings > Intuitive BI > Intuitive BI Dashboard Designer > Component Builder

A pop up window will appear that allows a title to be entered.

Series Display Options

Dependant on the component type there will be a number of display options.

ClosedClick to view - Chart Options - options vary dependant on Chart Type

Axes, Sort, Labels

Titles, font size, axis label orientation, sorting orders and legends can all be altered here.

Settings > Intuitive BI > Intuitive BI Dashboard Designer > Component Builder

Colour Scheme

Components can have either a dark or light background, these are set here.

Settings > Intuitive BI > Intuitive BI Dashboard Designer > Component Builder

Saving the Component

Once built the Component must be saved .

Settings > Intuitive BI > Intuitive BI Dashboard Designer > Component Builder

Component Drill Down

Component drill downs allow a part of the component to be clicked on to drill down into more details - this will be filtered by the parent component.

Settings > Intuitive BI > Intuitive BI Dashboard Designer > Component Builder

Drill down components are built in the same manner as Components. Repeat the steps to build the Drilldown component.
